Pavement marking equipment | Traffic marking machine
The road and pavement marking / painting techniques have changed and evolved throughout the years. Today, cities and companies have changed from the common thermoplastic paint to Methyl-Methacrylate (MMA.) Unlike thermoplastic and other road marking paints, MMA is highly durable, showing none of the peeling or fading seen on pavement marked with thermoplastic. Beyond lasting longer on the pavement, MMA offers superior visibility, color stability, and provides an anti skid finish. Not only that, but its application is easier and faster (no drying time.)
If you are in the market for a state of the art equipment, look no further. Benron’s RS300 and its patented technology, make the road traffic marking job easier than ever. Not only that, but it also handles bus lane marking and bike lane painting jobs with exceptional efficiency. This powerful MMA sprayer also works wonder on Anti-slip ship decks, anti-slip playgrounds, and more.
Please give continue reading to know more about the RS300 or contact us for more information

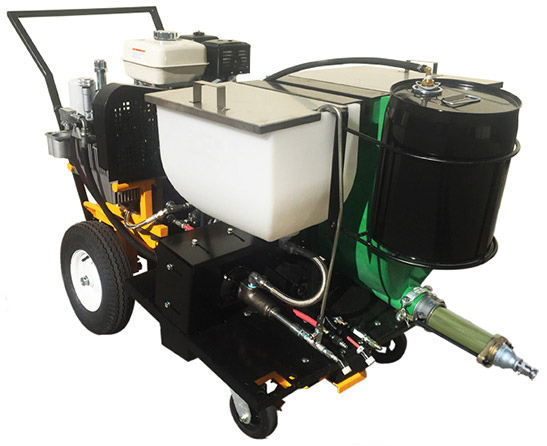

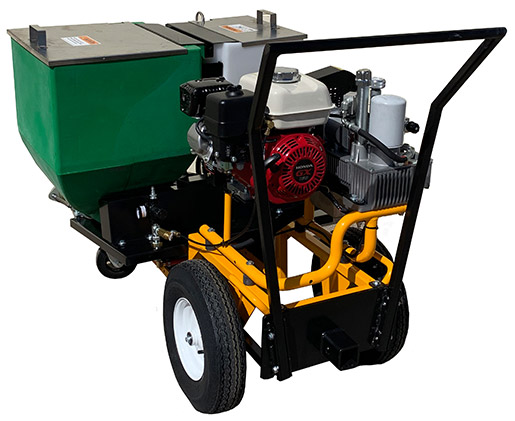

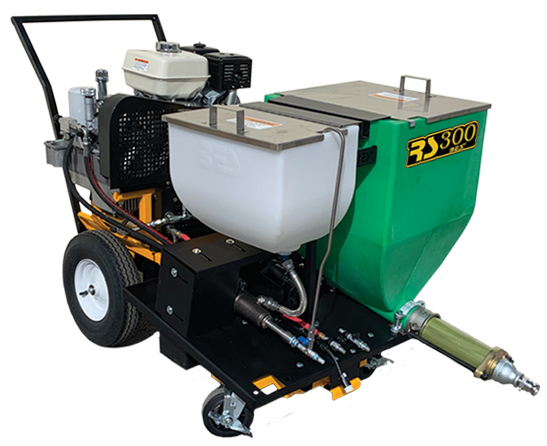

Our Pavement Marking Equipment Features:
- 32-gallon hopper for Methyl-Methacrylate (MMA)
- 10-gallon hopper for liquid Benzoyl Peroxide (BPO)
- Hopper designed with a 10-degree angle for easy material flow to the pump and easy clean-up
- Stainless steel hopper lids
- 8.5 HP Honda engine
- Dual compressor for high CFM
- Rotor-Stator: solvent resistant material pumping system
- Remote material pump: ON/OFF switch at the gun
- On board solvent flashing diaphragm pump with ON/OFF switch at the gun
- Special, 5-gallon mounting basket for flushing solvent
- Hydraulic power system with material volume control adjustment
- 16-inch wheels for easy mobility
- 6-inch caster front wheel with brakes
- Hitch and ball mount to connect to the line driver scooter for ease of transport
- 25-foot dual solvent resistant material hose
- Special spray gun solvent port clean out
- Easy to install and remove gun spray nozzle; no tools necessary
No extensive cleaning required at the end of the day!

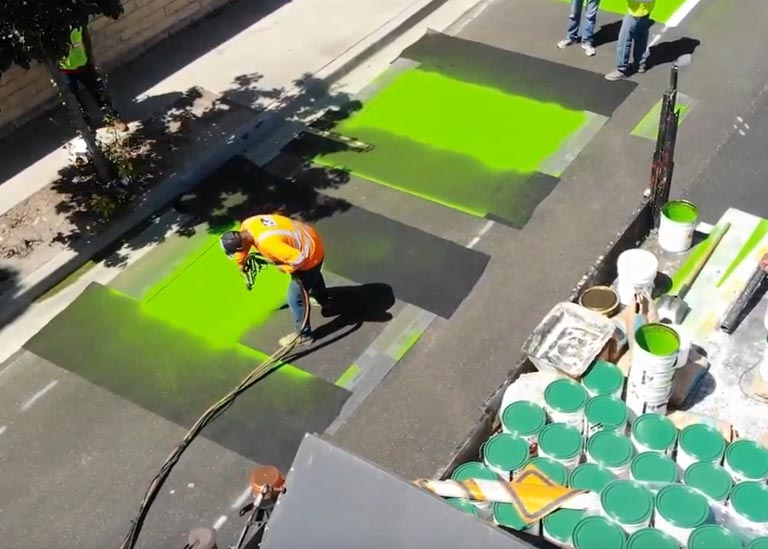

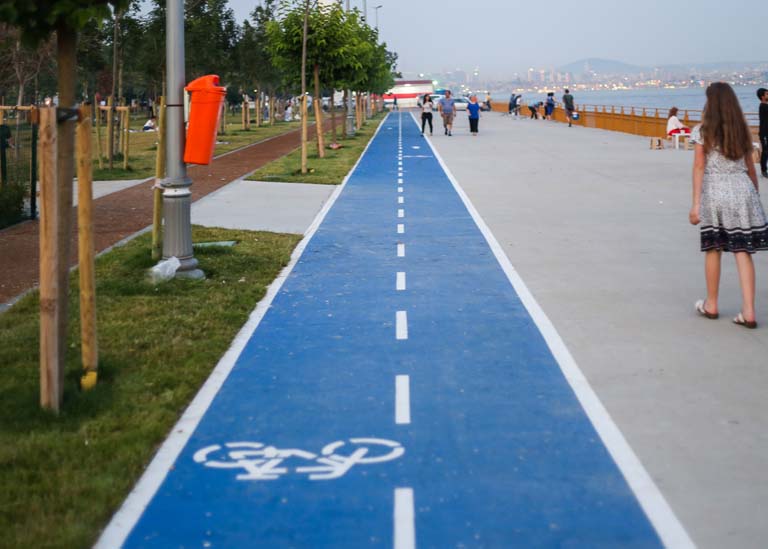

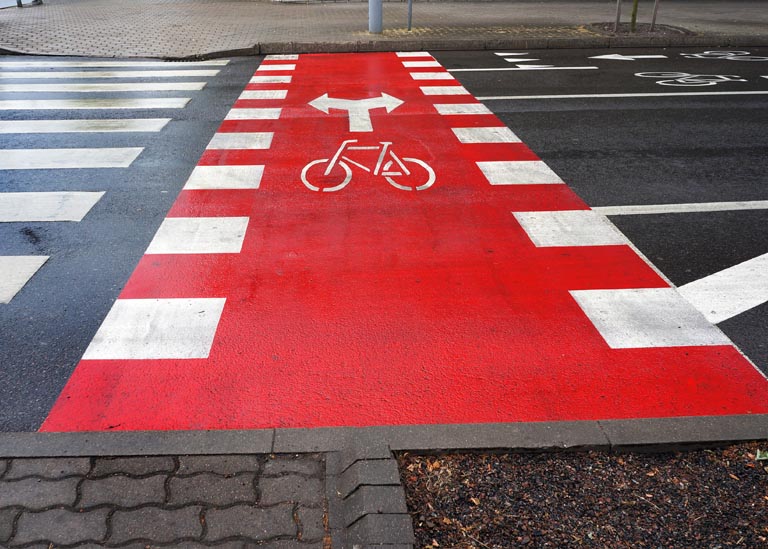

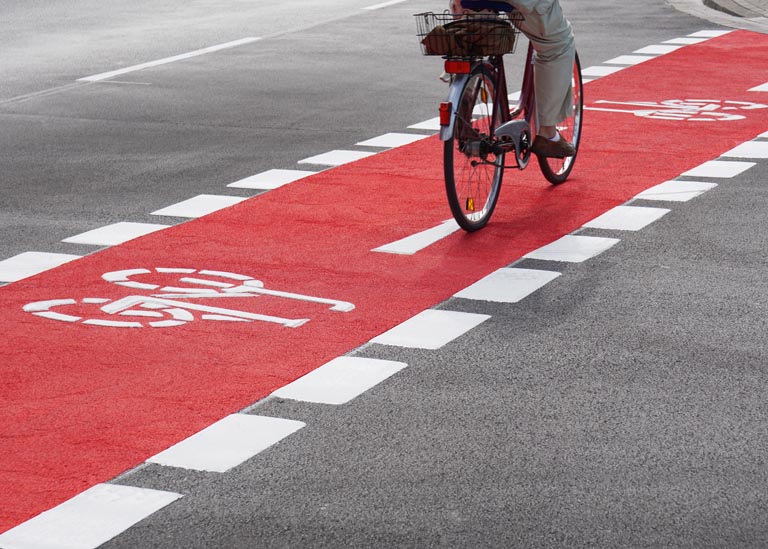

Pavement Marking - Photo and Video Gallery
Frequently Asked Questions:
No, since the MMA and the BPO on separate hoppers no cleaning requires, just clean the end of the gun cap and spray nozzle with acetone.
Most suppliers do not have the Aggregate pre-mixed with the MMA.
We recommend Corundum, Aluminium Peroxide, and Sand. The size of the aggregate can be up to 2mm.
The lifetime of the pump is depending on the turning speed and kind of aggreged used.
Normally the aggregate will not separate while you are using the machine. It will only separate and sink to the bottom if material is left in the hopper for several days.
You clean only with acetone.
You clean with mineral spirit that the VOC is more then 600 (never with acetone will damage the pump) or high-pressure water.
As you will only use 2oz of BPO per gallon of MMA while operating the machine, it is not required to fill the entire 10 gallons with PBO.
Yes, normally when the weather is cold ratio can be change by inserting smaller sprocket on the BPO pump.
The BPO flows on a separate ¼” line all the way to the gun head prior to mixing with the air and flowing though the spray nozzle to mix with the MMA. Since the air pressure for the BPO is much higher than the MMA pressure you should never have back flow of BPO to MMA.
Standard sprayer does not include but can be added for additional fee.
The machine is set up to spray one gallon per minute with a thickness of 60 mill (1.5mm), which should return you about 45 square feet (4.2 square meters) per minute. It is possible to have a higher GPM, but an additional external compressor is needed. The unit is set up that the CFM and the GPM will give a perfect anti-skid finish; any more material flow results in splatter coat finish.
The hopper cannot be removed as it connects directly to all the mechanicals component to turn the pump in the front of the machine.
Machine warranty is 2 years excluding normal worn-out parts during use.
CONTACT US
Benron equipment & supply, Inc.
Since 1989, Benron products are engineered and built to offer years of reliable service. Each product is assembled by hand in the U.S. with only the highest quality parts.
